Introduction

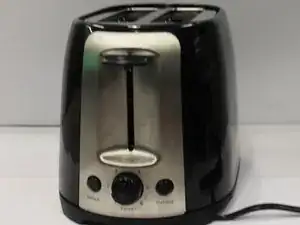

This guide will show how to remove and replace the browning dial/circuit of the Brentwood TS-292B.
Tools
-
-

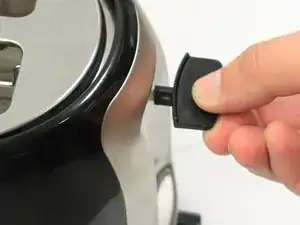

Pull hard on the browning lever until it detaches from the toaster.
-
It will take some force to pull it off.
-

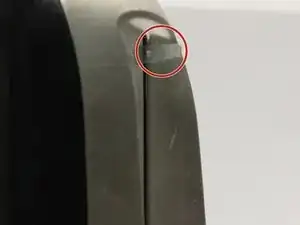

Once the tab is off, lift up on the housing to remove it from the toaster.
-
-
-

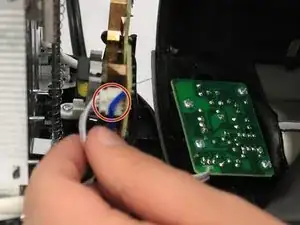

Once the housing has been pulled upwards, carefully uplug the wire connecting the browning dial circuit board to the main circuit board.
-
-
-

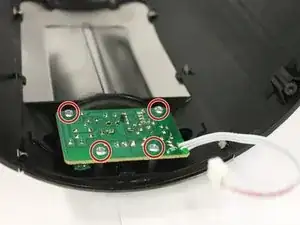

There are four screws on the circuit board for the browning dial.
-

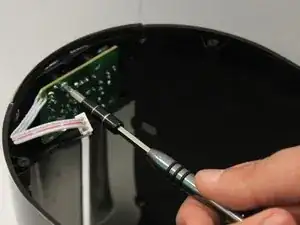

Unscrew each of them with a Philips head screwdriver to detach the board and remove the board and dial from the toaster housing.
-
-
-

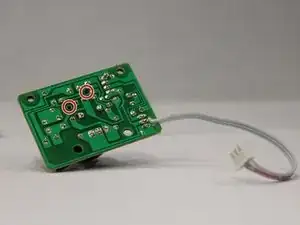

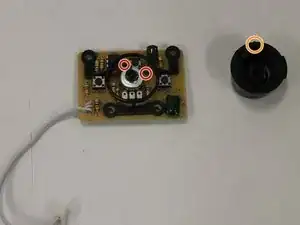

There are two holes on the board where the pin from the browning dial can align.
-
Replace the browning dial by inserting the pin on the dial into one of the holes indicated.
-
Replace the entire circuit board if need be.
-
To reassemble your device, follow these instructions in reverse order.
