Introduction
Purchase a new Governor. The sander should be unplugged from any power sources. Make sure you organize the removed screws, so you can reinstall them in the correct location.
Tools
Parts
-
-

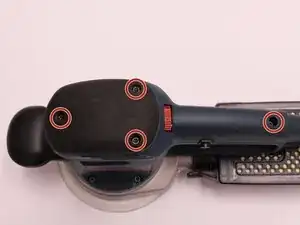

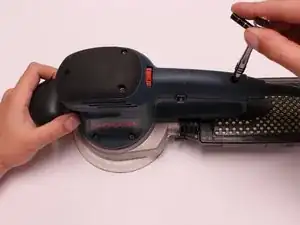

Using the T20 Torx Screwdriver, remove the four 15.6 mm screws securing the top cover to the sander.
-

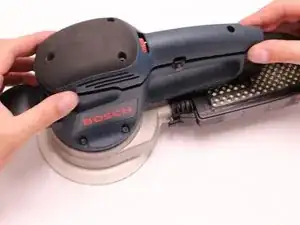

Lift the top off of the sander.
-
-
-

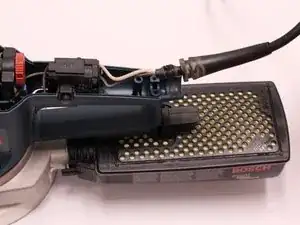

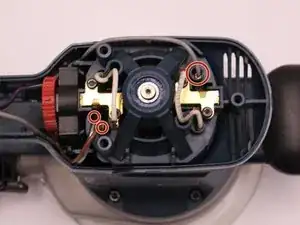

Using the T20 Torx Screwdriver, remove the two 15.6 mm screws securing the cable clip to the motor housing.
-

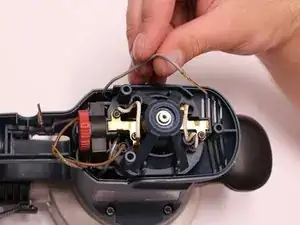

Lift the cable clip and cord from motor housing.
-
-
-

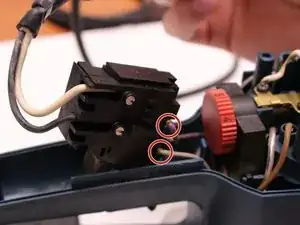

Remove the gray, brown, and clear wires by pulling on the wire terminals.
-
Lift the Governor out of the housing.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
