Black and Decker TR1278B Bread Grabber Spring Replacement

Written By: Brea-Monique

Comments: 8

Black and Decker TR1278B Bread Grabber Spring Replacement

Difficulty

Moderate

Steps

Time Required

No estimate

Introduction

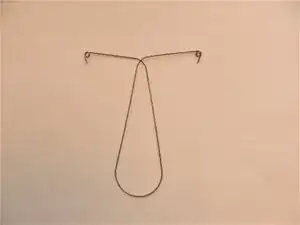

This is a replacement guide for the bread grabber springs on the Black and Decker TR1278B.

Tools

Step 1

Unplug the toaster before disassembly.

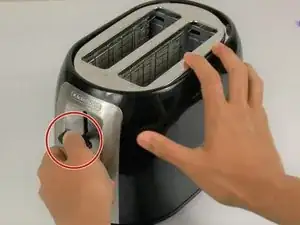

Remove the carriage lever by pulling it away from the toaster.

Pulling requires a bit of force as the plastic lever is elastically squeezed over the metal tab and the tab as a little “step” that is visible from below the tab that needs to come out.

Dan G - 05/01/18

Step 2

Toaster will be turned upside down. Clear crumb tray or work over a paper towel.
Turn the toaster upside down.

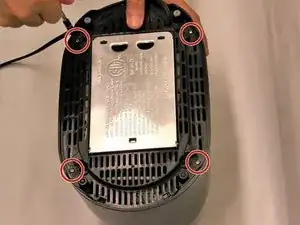

Unscrew all four 4mm screws on the bottom using a Phillip's head #2 (PH2) screwdriver.
Or a slightly different model has six screws that require an allen wrench (hex key). Ones that have a ball end will not work. I had to use one that had more of a Star of David, pointy pattern to it.

my screws are completely stripped, you can even see it in this image on the left

loe ;loele -

Philips screws would be much better so one can apply more controlled pressure. Screws are also made of cheep metal and strip out easily. Be careful.

Matt Yadlowsky -

I was able to get the screws out with a Grabit Speed Out bit.

https://www.thegrabitstore.com/collectio...

Matt Yadlowsky -

Step 3

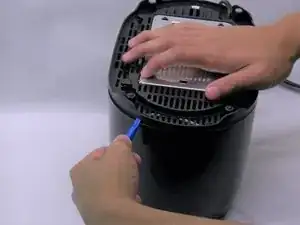

Detach the bottom from the front cover using the plastic opening tool.

Watch out for opposite side (front end) 2 folding metal clamps that hold the front end and must be lifted up at least partially before the next step of lifting the whole cover.

Note also that opening with plastic tool here requires a bit of “force”. I came at it from the side with a thinner plastic tool to help (not unlike trying to remove a tight bike tire from a wheel rim)

Dan G - 05/01/18

Watch for two folding metal clamps holding the front end. They must be at least partially lifted up before the next step of lifting the cover. Note also that inserting the plastic tool requires some “force”. I came at it a bit more from the side with a thinner plastic tool (cafeteria plastic knife) to help lifting and insert the main plastic tool, not unlike trying to remove a tight tire from a bicycle wheel.

Dan G - 05/01/18

WEAR GLASSES! For more recent edition (2022 perhaps?) there is a plastic piece that would not budge with the pry-tool: ended up shooting up into my lip as I detached the two halves

Mark -

Step 4

Turn the toaster right side up.
Support the bottom. The ribbon cable that connects the toaster to the front cover can be damaged.

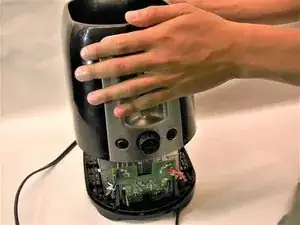

Lift the front cover.
Lift carefully. Again the ribbon cable can be damaged.

Step 5

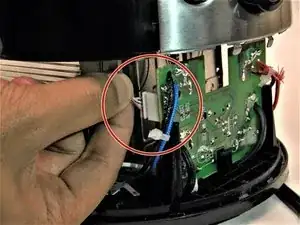

Detach the bundled cable connector from the toaster by carefully pulling it away from the circuit board.

This seems incompete. What next after detachingthe bundled cable connector?

jonathanlshaw -

Step 6

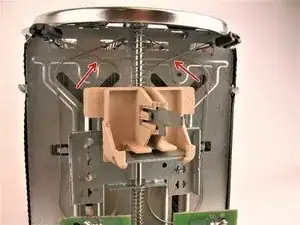

Locate the spring

Step 7

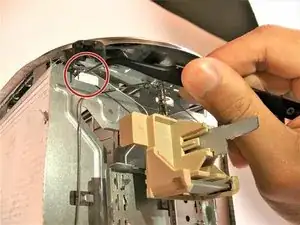

Press down on the toaster lever to gain access to the grabber spring located behind the large metal plate.

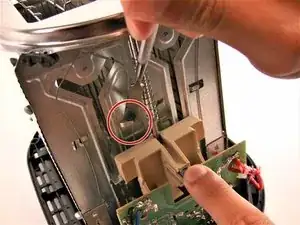

Use metal spudger to loosen clamps on spring.
