Introduction
-
-

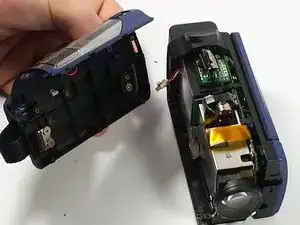

Use a plastic opening tool to disconnect the internal hinges that snaps the camera into place.
-
-
-
It will still be connected by a plastic film. This can also be disconnected by pulling up the white part where it connects to the light circuit board.
-
-
-
Pull the side with the hand strap upwards to disconnect it from the camcorder.
-
Unscrew the four 40 mm Phillips #0 screws.
-
Add the new hand strap now.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
