Axe Empire 2.0 OLED Board Replacement

Written By: Christopher Ramos

Comments: 0

Difficulty

Moderate

Steps

Time Required

25 - 30 minutes

Introduction

Use this guide to replace a malfunctioning OLED Board in your Axe Empire 2.0 Marker.

The OLED Board is a screen on a paintball marker that allows you to see text and graphics of your devices settings. A malfunctioning OLED Board can cause your marker to make you unable to modify your devices setting, view important information, or unable to turn the device on at all.

A battery leaking battery acid is unsafe so I recommend you wear gloves when getting in the inside of your Axe Empire 2.0.

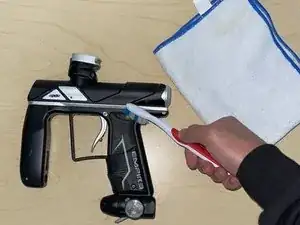

In step 1 of this guide, you will need to use an old toothbrush and possibly a rag. Since this device is used with players with other people and constantly getting hit with paint, cleaning out the Allen heads will ensure the correct Allen keys will fit.

Tools

Step 1

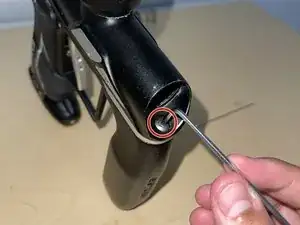

Use an Allen key to remove four total screws.
2.5 mm screws.
1.2 mm screw.

Step 2

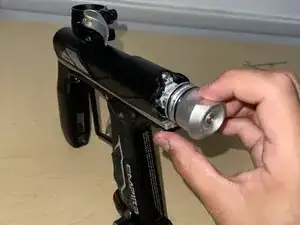

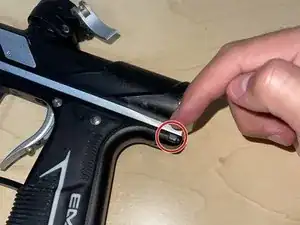

Press and hold the release button while lightly pulling the spring bolt out.

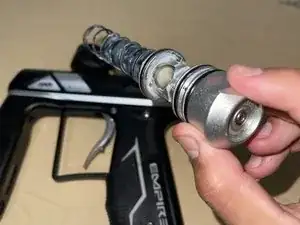

If the spring bolt has not been serviced with lube after a long time you might need to pull harder. This is a great time to lube the spring bolt.

Step 3

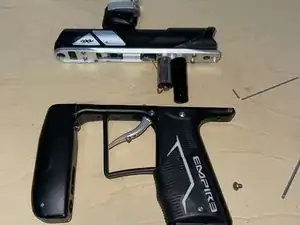

Remove the two main screws using a 2.5 mm Allen key to separate the air transfer plate from the frame.

Step 4

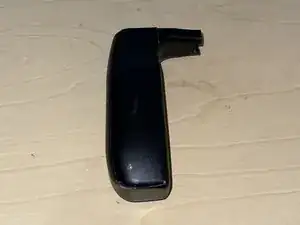

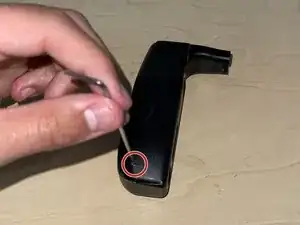

Remove the screw using a 2.5 mm Allen key and remove the foregrip from the frame.

Step 5

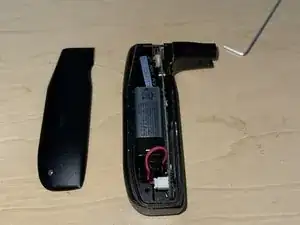

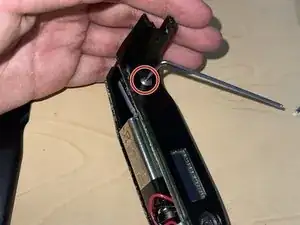

Use a 1.2 mm Allen key to remove the screw, and remove the cover to expose the OLED Board.

Step 6

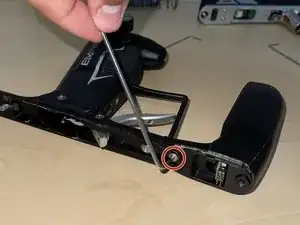

Remove the last screw with a 2.5 mm Allen key to loosen the OLED Board.

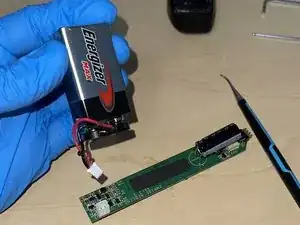

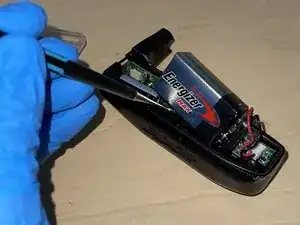

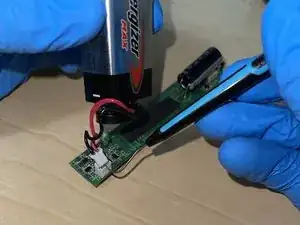

Use a pick tool to carefully remove the battery and OLED Board together out of the foregrip.
Wear gloves in case battery is defective and leaking acid.
