AvertX HD810 Dome Cover Replacement

Written By: Elisabeth Garcia

Comments: 0

Difficulty

Easy

Steps

Time Required

4 minutes

Introduction

This guide covers removing the clear dome cover for the AvertX HD810 security camera. You need a T10 Torx security screwdriver and a replacement dome cover for the camera. It's advised to have the camera turned off for this procedure.

Tools

T10 Torx Security Bit Screwdriver

Step 1

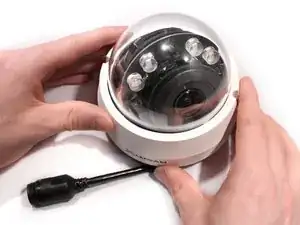

Lift off the paintable snap-on cover from the AvertX HD810 dome security camera.
Optimally, the device should be turned off and the PoE (Power over Ethernet) unplugged.

Step 2

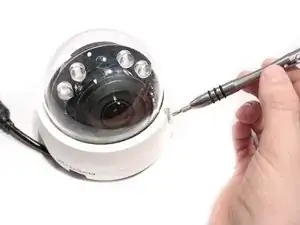

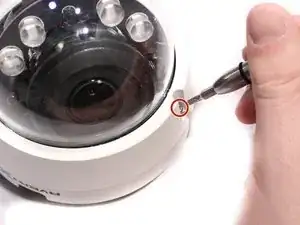

Loosen both 10mm screws on either side of the clear dome cover housing using a T10 Torx security screwdriver.
It is not recommended to remove the screws from the clear dome cover housing. The screws are apart of the cover and not intended to come out.

Step 3

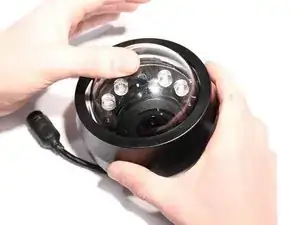

Gently pull off the clear dome cover from the camera base.

Conclusion

You've successfully replaced your AvertX HD810 clear dome cover when you've snapped back on your paintable snap-on cover. You can reassemble your device at any point by following the steps in reverse order.
