Audio-Technica ATH-M40x Earpad Replacement

Written By: OMT
  • Comments: 2
Audio-Technica ATH-M40x Earpad Replacement

Difficulty

Very easy

Steps

6

Time Required

5 - 10 minutes

Introduction

This guide will show you how to replace the worn-out earpad cushions on your Audio Technica ATH-M40x headphones. Whether you want to extend the life of your headphones, restore sound quality, or opt for cushions that provide a better fit, this guide has you covered.

Make sure replacement cushions match the specifications of the ATH-M40x model before you begin.

  1. yRfMXUfRGkOjtZeE
    yRfMXUfRGkOjtZeE
    j4fNwoYBgfisykol
    J6mDKRSyHakUHbVP

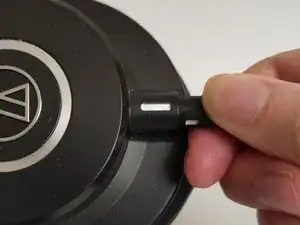

    • Turn the headphone cable counter-clockwise to unlock.

    • Remove the headphone cable by pulling it out.

    • The headphone cable is unlocked when the white line markers are not aligned.

  2. Ar5mbX5dGEalDALa
    Ar5mbX5dGEalDALa
    NmOBklc5SKBWUKDx
    2MZkGRR5L5VUNA1c

    • Turn the earcups over to make removal of the cushion easier.

  3. SRGhEXblEuogpV1f
    SRGhEXblEuogpV1f
    2alRvLQhN5HuaK66
    hljZkSbVIkkWEskX

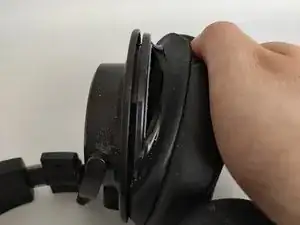

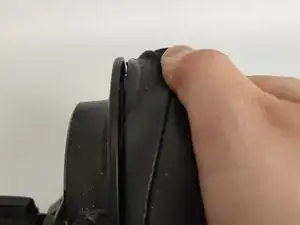

    • With one hand, hold your headphones in place while the other grips the earpad cushion.

    • Gently pry the old earpad cushion off.

    • You may need to slide it off the lip of the driver before prying it off.

  4. PYaDlBBFcZv2adsk

    • Use a microfiber cloth to wipe off any moisture or debris from the headphone drivers before installing your new earpad cushion.

    • Using a damp or wet cloth may damage headphone drivers.

  5. DDUvXSOvIoYGUnKt
    DDUvXSOvIoYGUnKt
    5IvPaZHWK6TJsgZ4
    Ew4TXahpO4avmuRY

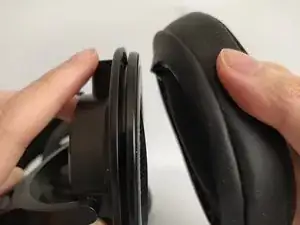

    • Align the edge of new cushion to your headphone driver.

    • Slide the cushion over the headphone drivers until it is fully attached.

  6. MqWMfSL52L4RFOtd

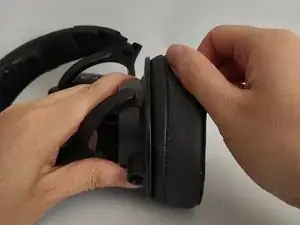

    • Rotate the cushion to make sure it is securely in place.
