ASUS Chromebook C424MA-DH48F Motherboard Replacement

Written By: Jacob Mckee
  • Comments: 0
ASUS Chromebook C424MA-DH48F Motherboard Replacement

Difficulty

Difficult

Steps

13

Time Required

40 - 50 minutes

Introduction

This is the ASUS Chromebook (Model C424MA-DH48F), here we will be guiding you though a motherboard replacement for the ASUS Chromebook.

Reasons to replace the motherboard include:

  • Performance loss
  • Sudden crashing
  • Water damage
  • Physical damage

  1. 1iAVSKtaUPx3sbbb
    1iAVSKtaUPx3sbbb
    dPqU6xH3TK2y3FJM

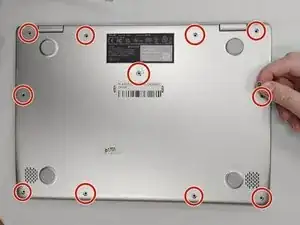

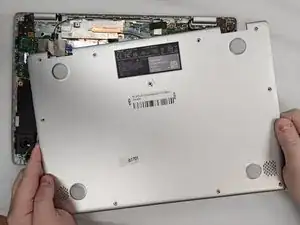

    • Use a Phillips #0 screwdriver to remove the eleven 6.9 mm screws that secure the lower case.

    • Make sure all the screws on this side get taken out because there could be a label or warranty sticker covering up a screw that might be missed.

    • Insert an opening pick into the gap between the lower case and chassis.

    • Slide the pick around the entire perimeter of the laptop until the lower case fully releases.

    • Remove the lower case.

  2. 3A6hZNCAcamCd52g
    3A6hZNCAcamCd52g
    dWTegYJKs1qLoGNW
    RQYbBGRTK4qM2QF1

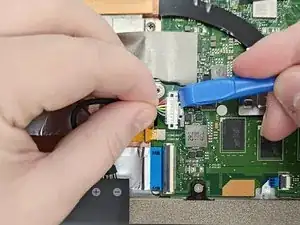

    • Use an opening tool to pop up the silver locking bar securing the battery connector.

    • Push the battery connector directly out of its motherboard port.

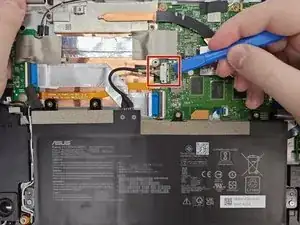

  3. TuSxCo2RZ3ZjVXnL
    TuSxCo2RZ3ZjVXnL
    fa56lglqHTcZNXFh
    WuQuneMtH1lvJqZT

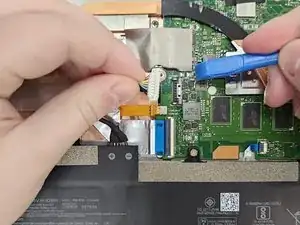

    • Carefully use the plastic prying tool and pop up the locking bar and lift the connector off with your hand.

  4. pRPHQpoCsxfdeEe6
    pRPHQpoCsxfdeEe6
    VWwBIclGHAoS2BTr
    qALVmtMLDo1I1nq1

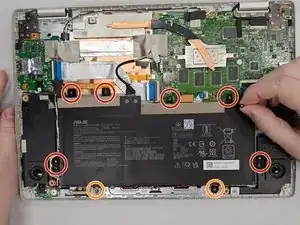

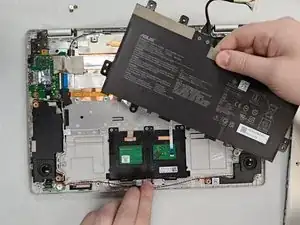

    • Use a Phillips #0 screwdriver to remove the six 4.1 mm screws that secure the battery.

    • The two screw holes (marked in orange) on the bottom won't have screws associated with them since they were removed earlier when the base was removed.

    • Unseat the speaker cable from the black plastic hooks on the lower side of the battery.

    • Lift the battery up and out of the chassis.

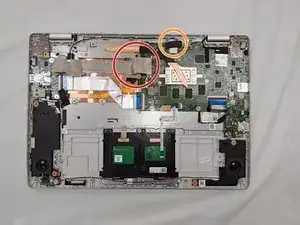

  5. qCTaGRsyemJlxD1d

    • Remove the thermal tape covering the top left ribbon connector.

    • Remove the black electrical tape covering the top most connectors.

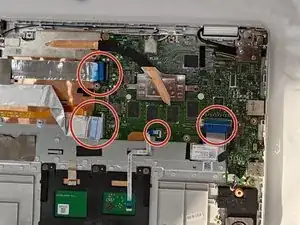

  6. xjG31cZ6AKXYnSDh
    xjG31cZ6AKXYnSDh
    DXDDbyMa1MMmGref
    TEkgYKNSAneyp6YJ

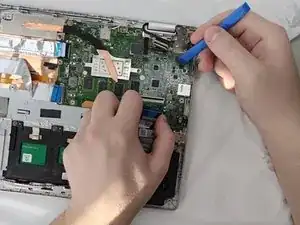

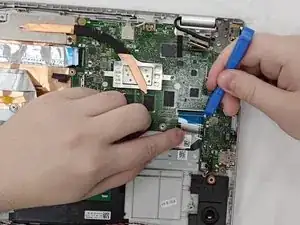

    • Use an opening tool or your fingernail to flip up the four black ZIF locking flaps that secure the four ribbon cables.

    • The ribbon connectors are thin and delicate, take care when handling to not tear them.

    • Gently disconnect all four ribbon connectors from the motherboard.

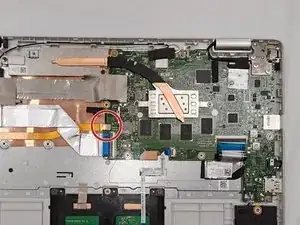

  7. W4mgYj4HZ5iQXwA4

    • Use an opening tool to gently lift the press connector labeled "IO" straight to disconnect it.

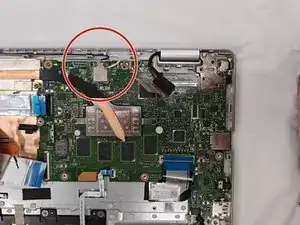

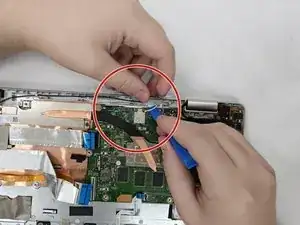

  8. O3vKRDhPja56OATn
    O3vKRDhPja56OATn
    Jks4xaUHo41i1RXA

    • Use an opening tool to lift and disconnect the black and white antenna cables wires from the wireless module.

  9. OKVPZMgWmXWXRPok
    OKVPZMgWmXWXRPok
    Zwl2SXkNNrCjZFth

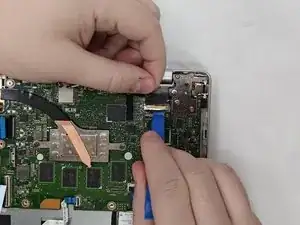

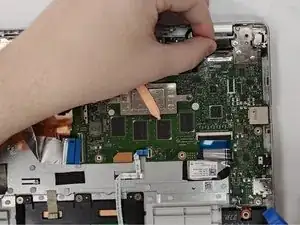

    • Peel away the clear tape covering the display connector.

    • Lift up the display connector lock bar with an opening tool to release it.

    • Disconnect the display connector.

  10. YwdEPHTPICDWEBN4

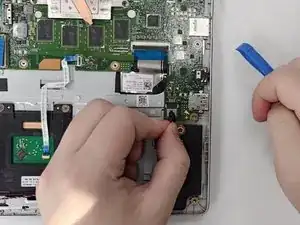

    • Use your fingernails or two opening tools to "walk" the speaker connector out of its socket.

  11. SSpFYFFRCEgTRBqS
    SSpFYFFRCEgTRBqS
    SomBQ6oK2EWUPlQl
    yAnvdtYdZWUA5NEm

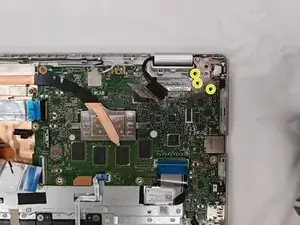

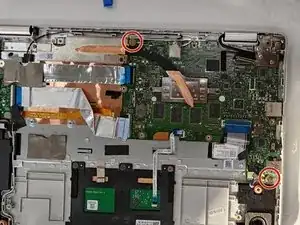

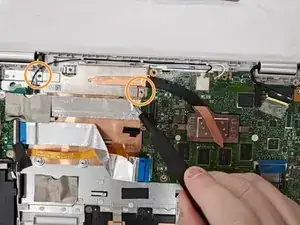

    • Remove the two 2.8 mm Phillips screws that secure the motherboard.

    • Remove the two 3.3 mm Phillips screws.

    • Remove the three 1.4 mm Phillips screws that secure the hinge located at the top-right section of the motherboard.

  12. SpUxIKiHmi5OdhAj

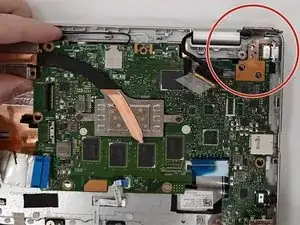

    • Lift up on the top-right hinge until it's out of the way of the motherboard.

  13. hemAICAmeUBcCmTX

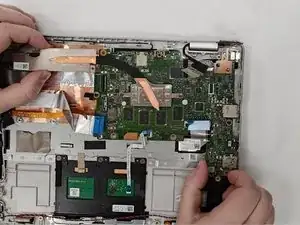

    • Lift and remove the motherboard.

    • When lifting avoid any twisting or jerking motions as this could result in damage to the board or CPU cooler.

Conclusion

To reassemble your device, follow the above steps in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.
Repair didn’t go as planned? Try some basic troubleshooting, or ask our Steam Deck answers community for help.
