2015 Jeep Renegade Rear Windshield Wiper Replacement

Written By: littleturkey03
  • Comments: 2
2015 Jeep Renegade Rear Windshield Wiper Replacement

Difficulty

Easy

Steps

7

Time Required

10 minutes

Introduction

  1. 2JT4AgDPuHPCkm6X
    2JT4AgDPuHPCkm6X
    YhoVbIhc1blWCrsB

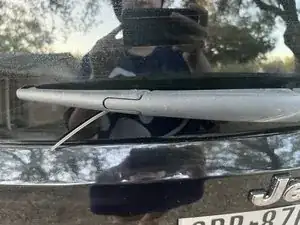

    • Rear windshield wiper after 7 years, needing to be changed. Rubber blade has detached from the wiper.

  2. FYUEDrXObalJnfxS
    FYUEDrXObalJnfxS
    FpZDxn11kSH6xyGy

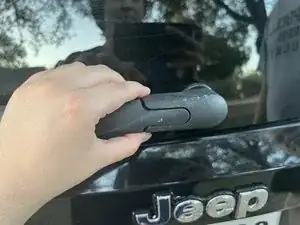

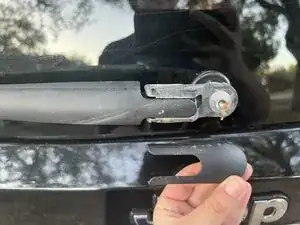

    • Remove cap by pulling on it.

  3. wxPXhX5mtHjKwSdl
    wxPXhX5mtHjKwSdl
    dYxCP3ZPIulJoM25

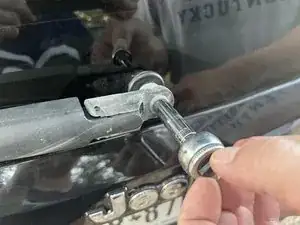

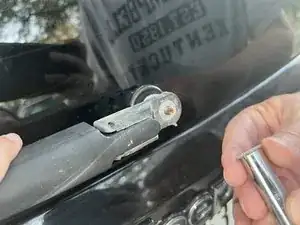

    • Using a 10mm socket wrench, remove the nut.

  4. I13jvNpyYLhSSdHH

    • To remove the wiper arm off the wiper motor linkage, pull straight back. This will require considerable force. The wiper linkage is tapered and knurled.

  5. AEGKXopvLLxTTcQx
    AEGKXopvLLxTTcQx
    NCJnWsVXyk4TZULe

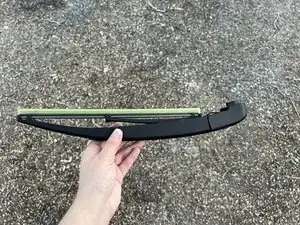

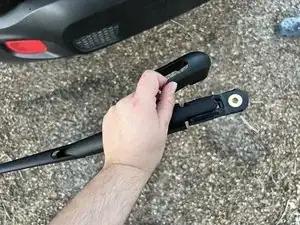

    • Remove the cap from the new wiper arm

    Buenas tardes una pregunta dónde consigo q necesito i de eso porfa me responde

    Guillermo Perez -

  6. HpyioP1wwlVZutdE
    HpyioP1wwlVZutdE
    RFwKvnFtsQpZsQYj

    • Push the new wiper arm onto the wiper motor linkage and tighten the nut.

  7. 1kPMeuCCffWZEBxo

    • New rear wiper blade replaced
