2011-2013 Scion tC Trunk Light Replacement

Written By: Nick d'Alencon
  • Comments: 0
2011-2013 Scion tC Trunk Light Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

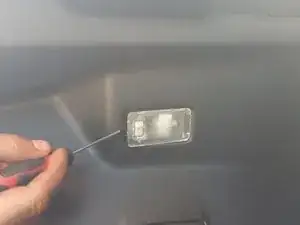

  1. 41hnVJWoPEwK5IfV
    41hnVJWoPEwK5IfV

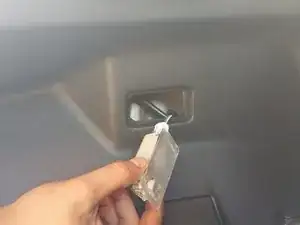

    JqkQLQJNAUgE5c1Z

    • Remove clear plastic housing using a pry tool.

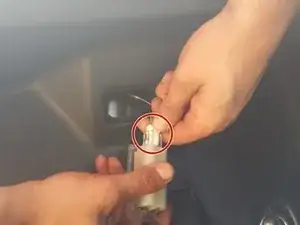

  2. XUL4BPIBnjnqdO3l
    XUL4BPIBnjnqdO3l

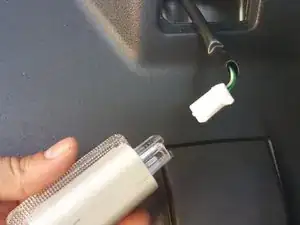

    Py3KPVLPTL4iVc5t

    • Remove the lighting unit from the plastic header by pressing inward on the side tabs and pulling outward.

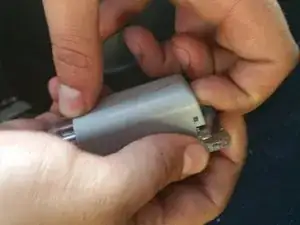

  3. WDfbIljHtNhMDVCe
    WDfbIljHtNhMDVCe
    ZJmN26hDb1mUyQQH

    • Remove back plate and switch from the unit to reveal the LED bulb.

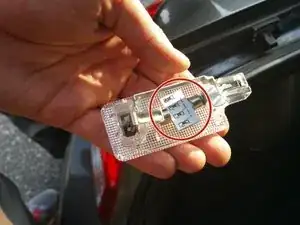

  4. DUNEJSNOjdKdYYIY
    DUNEJSNOjdKdYYIY

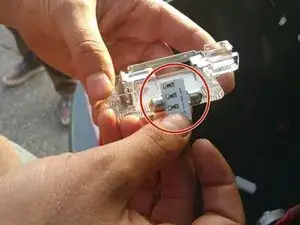

    stsDUghHIHpShfi6

    • Remove the LED from the casing by pulling upwards.

    • When inserting the replacement, take note of the direction and polarity of the unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
