2011-2013 Scion tC Radio Head Unit Replacement

Written By: Dylan Smith
  • Comments: 0
2011-2013 Scion tC Radio Head Unit Replacement

Difficulty

Easy

Steps

6

Time Required

15 - 30 minutes

Introduction

This guide will teach how to safely remove and replace the radio head unit of the car.

  1. rQW1GPAUw4dMwuSH
    rQW1GPAUw4dMwuSH
    ekxXE6cZkTVWYKGY

    • Remove the dashboard panel around the radio head by pulling on the bottom of the unit.

  2. RLKkq2wwqFXpWDUE
    RLKkq2wwqFXpWDUE
    XqENFbCvKjbbYS1M

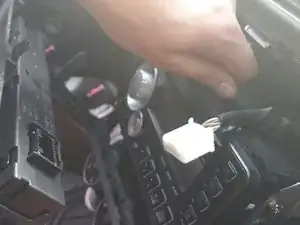

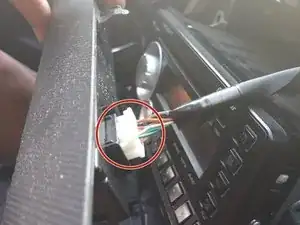

    • Remove the wire header connected to the panel by pressing inward on the tabs.

  3. NhljmUf4mtiPXrgd

    • Remove the four #2 12mm screws securing the head unit in the housing

  4. Iwd2NZHs1dW6XbFG
    Iwd2NZHs1dW6XbFG
    hkVyLIRlLQZmW2q4

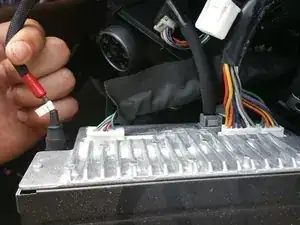

    • Remove each bundle of wires that is connected to the back of the head unit.

  5. PKdBwK1IcmphrSxg
    PKdBwK1IcmphrSxg
    lVvKrnVug1FbKPyL

    • Locate the metal brackets on the side of the head unit.

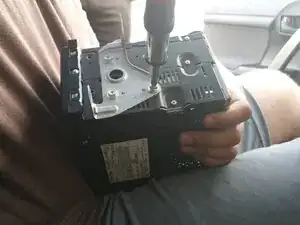

    • Use a Philips head screwdriver, remove the three #2 25mm screws from both support brackets on the side of the head unit

  6. ngram25quGXil4fu

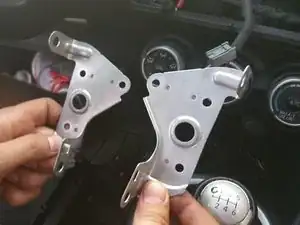

    • Screw the support brackets to the new radio head unit

    • Note that the brackets are unique to the car. They will not come with your new head unit.

Conclusion

To reassemble your device, follow these instructions in reverse order.
