Introduction
Tools
-
-
First locate the 4 screws to remove the door panel. See pic1
-
2 screws are visible.
-
The other 2 screws are behind items.
-
Location of the screws.
-
First screw is under the door lock/window controls. See pic 2.
-

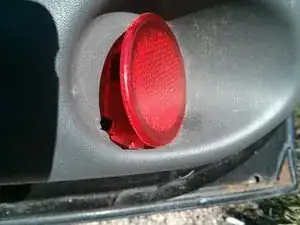

Next screw located lower right of panel behind reflector. See pic 3
-
-
-
After removing screws, Pull on the panel around the outside to release the pop-in clips.
-

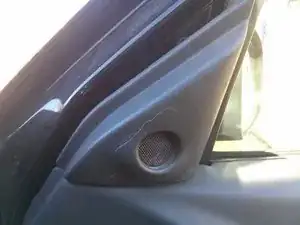

Then remove the panel from the door by lifting up and backward on the panel. Pic 2
-
-
-
On the bottom of the glass inside the door there are two bolts that hold the window to the plastic track on the regulator.
-
Before you remove the second screw hold the window to prevent breakage of the window.
-
While holding the window remove the second screw and lift out the window from the door.
-

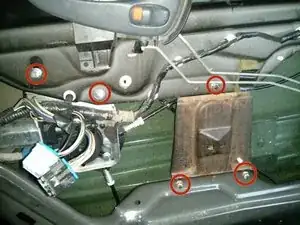

Locate and loosen the 4 bolts holding the regulator. See pic 1.
-
Then remove the window regulator motor and all of the track from the door...
-
-
-
Then replace the regulator and reverse the procedure to install the regulator back in the door.
-
To reassemble your device, follow these instructions in reverse order.
